D641X Pneumatic Flanged Center Line Butterfly Valve

Product overview

Product model: D641X
Nominal diameter: DN25~1000mm
Nominal pressure: 1.6MPa
Body material: WCB, 304, 316, UPVC
Valve plate material: 304, 316, 316L, nylon plate, aluminum bronze, ductile iron nickel plating
Applicable temperature: NBR: -30 ~ 80℃;EPDM: -30 ~ 120℃;PTFE: -30 ~ 130℃
Design standard: GB/T2238-1989
Flange connection size :GB/T9113.1-2000;GB/T9115.1-2000;JB78
Structure length :GB/T12221-1989
Pressure test :GB/T13927-1992;JB/T9092-1999

D641X Pneumatic Flanged Center Line Butterfly Valve product details

D641X Pneumatic Flanged Center Line Butterfly Valve overview

D641X Pneumatic Flanged Center Line Butterfly Valve produced and sold by Baigang valve group is a center of rotation (ie, valve shaft center) located in the valve body centerline and the butterfly valve sealing section of the butterfly valve, the connection of the folder and flange. Pneumatic midline butterfly valve fluid resistance smaller, large diameter butterfly valve fully open when the effective flow area larger, quick opening and closing effort, the use of compressed air to drive the disc pull rotation angle of 90 to complete the opening and closing can also be assembled on the electrical valve positioning Media on the media flow, pressure, temperature and other parameters to regulate control.

D641X Pneumatic Flanged Center Line Butterfly Valve features

1, compact and lightweight, easy disassembly and maintenance, and can be installed in any location.
2, the structure is simple, compact, small operating torque, 90 ° turn quickly open.
3, the flow characteristics of a straight line, adjust the performance.
4, butterfly plate and valve rod connection pinless structure, to overcome the possible internal leakage point.
5, the use of spherical disc butterfly shape, improve the sealing performance and extend the service life of the valve, open more than 50,000 times the pressure remains zero leakage.

D641X Pneumatic Flanged Center Line Butterfly Valve technical parameters

Body material: WCB, 304,316, UPVC
Valve plate material: 304,316,316L, nylon plate, aluminum bronze, ductile iron Nickel
Seal Seat: NBR, EPDM, PTFE [Pressure grade]: 1.6MPa
Nominal diameter : DN25-DN1000
structure: A type, LT lug type
connection: wafer, flanged
solenoid valve voltage: AC220V / 110V / 380V / 24V 50 / 60HZ DC24V / 12V + 10% to -10%
temperature range: NBR: -30 ~ 80 ℃; EPDM: -30 ~ 120 ℃; PTFE: -30 ~ 130 ℃
Pneumatic Actuator: Double acting, single acting
Pneumatic accessories: reversing solenoid valve, limit switch, air filter pressure reducing valve, Electrical locator, hand wheel mechanism

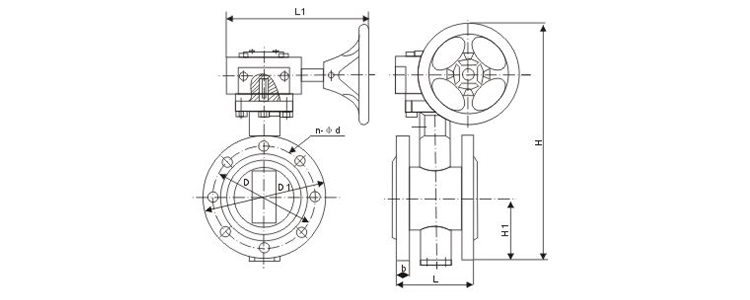

caliber	inch	Flange GB GB size PN10 / PN16 / PN25						Actuator size
caliber	inch	L	H	H1	D1	nd	Weight KG	A	B	C
DN50	2	108	245	80	125/125/125	4-18 / 4-18 / 4-18	12	217	137	111
DN65	2-1 / 2	112	250	90	145/145/145	4-18 / 4-18 / 8-18	13.75	258	147	122
DN80	3	114	350	98	160/160/160	4-18 / 8-18 / 8-18	16.25	258	147	122
DN100	4	127	380	112	180/180/190	8-18 / 8-18 / 8-22	21	299	165	135
DN125	5	140	410	128	210/210/220	8-18 / 8-18 / 8-26	30	349	182	153
DN150	6	140	490	147	240/240/250	8-22 / 8-22 / 8-26	37	397	199	173
DN200	8	152	560	178	295/295/310	8-22 / 12-22 / 12-26	49	473	221	192
DN250	10	165	621	215	350/355/370	12-22 / 12-26 / 12-30	72	560	249	213
DN300	12	178	680	250	400/410/430	12-22 / 12-26 / 16-30	92	601	280	243
DN350	14	190	757	280	460/470/490	16-22 / 16-26 / 16-33	127.5	738	383	356
DN400	16	216	825	320	515/525/550	16-26 / 16-30 / 16-36	158	738	383	356
DN450	18	222	925	350	565/585/600	20-26 / 20-30 / 20-36	202	738	383	356
DN500	20	229	1010	380	620/650/660	20-26 / 20-33 / 20-36	251	940	434	415
DN600	24	267	1180	440	725/770/770	20-30 / 20-36 / 20-36	350	940	434	415
